Atomos Shinobi 7” 4K HDMI/SDI Monitor

Name: Atomos Shinobi 7” 4K HDMI/SDI Monitor
Brand: Atomos
SKU: 71153
Price: 599.0 USD
Availability: InStock

by Atomos

$0.00 - $0.00

$0.00

$599.00

$599.00 - $599.00

$599.00

SKU 71153

Minimum quantity allowed is .

Maximum quantity allowed is .

The product can be bought in quantity increments of .

Description
Additional Information

Shinobi 7 combines a large 7” HDR screen with a calibrated peak brightness of 2200nits and the lightweight monitor-only functions of the original Shinobi. The Shinobi 7 can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI or SDI. An ideal directors’ monitor, focus pullers’ monitor, program or preview display for video switchers, and perfect for vloggers presenting to camera.

Glazer's SKU

71153

Manufacturer

Atomos

MFG SKU

ATOMSHB002

Product Specs

Panel Type	IPS-Type LCD
Display Size	7.0" / 17.8 cm
Resolution	1920 x 1200
Aspect Ratio	16:10
Touchscreen	Yes
Maximum Brightness	2200 cd/m2
Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
HDR Compatibility	Advanced HDR
Pixels Per Inch (ppi)	323 ppi
Real-Time LUT Monitoring	SDR, HDR
Image Controls	Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

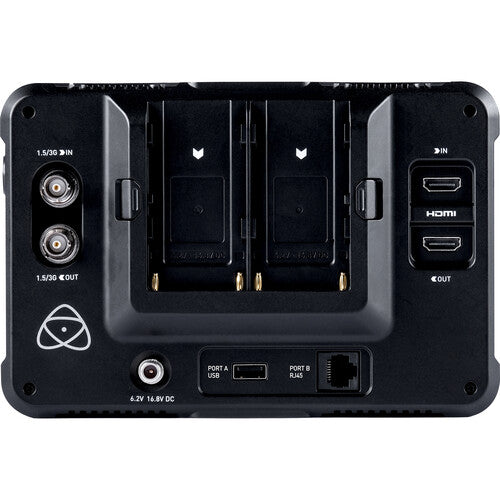

I/O

Video	1 x HDMI Type A (HDMI 2.0) Input 1 x BNC (3G-SDI) Input 1 x HDMI Type A (HDMI 2.0) Loop Output 1 x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI: 2-Channel SDI: 2-Channel
Audio	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	None
Power	1 x Coax (16.8 VDC) Input
Other I/O	1 x LANC (2.5 mm) Output 1 x USB 2.0 (USB Type-A) Input 1 x RJ45 Input/Output
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC

Wireless

Wi-Fi

None

Format Support

Video Format	HDMI (8/10-Bit 4:2:2) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 720p: 60/59.94/50 SDI (8/10-Bit 4:2:2) DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/25/24/23.98 720p: 60/59.94/50
Gamma Curve	ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, JVC J-Log, Panasonic V-Log, REDlogFilm, Rec2020, Rec709, Sony S-Log 2, Sony S-Log 3

Power

DC Input Power	6.2 to 16.8 VDC
Battery Type	2 x L-Series
Power Consumption	4 W (Typical) 7 W (Maximum)

Mounting

2 x 1/4"-20 Female

Environmental

Operating Temperature

32 to 104°F / 0 to 40°C (Recommended)
